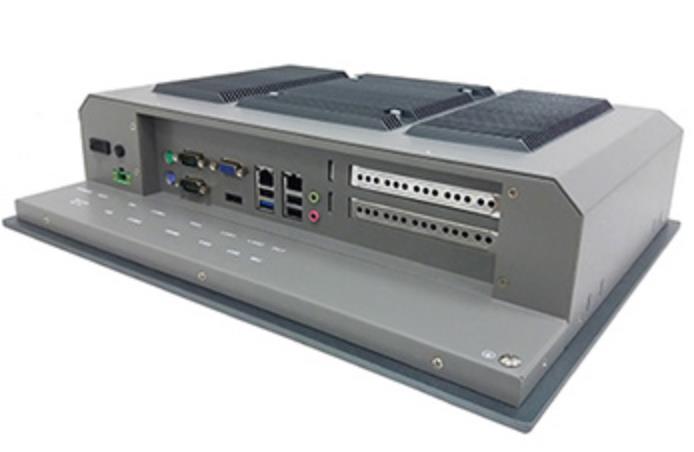

PPC-6315-T02-15寸2PCI

Processor

CPU

J1900 (Bay Trail-D )

Chipset

2.0GHz/4C/4T

Consumption

10W

Memory

Frequency / Capacity

1 x DDR3L 1333MHz, Optional capacity, up to 8GB

Storage

SATA

Optional 1 x 2.5”Hard   Disk (Optional capacity)

mSATA

Optional 1 x mSATA   (Full-size, Optional capacity)

Display

Display

Intel HD Graphics

Screen

LCD Size/Display Type

15" XGA LCD

Resolution

1024×768

Display Color

16.7M

Viewing Angle

85/85/85/85

Luminance

350 cd/㎡

Contrast Ratio

1500：1

Touch Type

Five-wires Resistive

Rear I/O

Input Voltage

12 Vdc

Power Switch

1 x Power SW

Display Port

1 x VGA；1 x HDMI

COM

2 x RS232/422/485

LAN

2 x Gigabit LAN (Intel i211-AT + Realtek   RTL8111G )

USB

3 x USB2.0 ; 1 x USB3.0

KB/ MS

1 x PS/2 KB/MS

Audio

1 x Line-Out/MIC

WIFI

1 x Half Size Mini   PCIe Slot

Adapter

Input

AC 100~240V/1.5A   50/60Hz

Output

DC 12V/5A

Expansion

Mini PCIe

1 x Mini PCIe (Half-size)

PCI

2 x PCI

Dimensions

W:392mm D:95.6mm H:300mm

Environment

Operation Temp & Humidity

-10~60℃/10~90%,  Non-Condensing

Storage Temp & Humidity

-20~70℃/10~90%,  Non-Condensing
